OSG

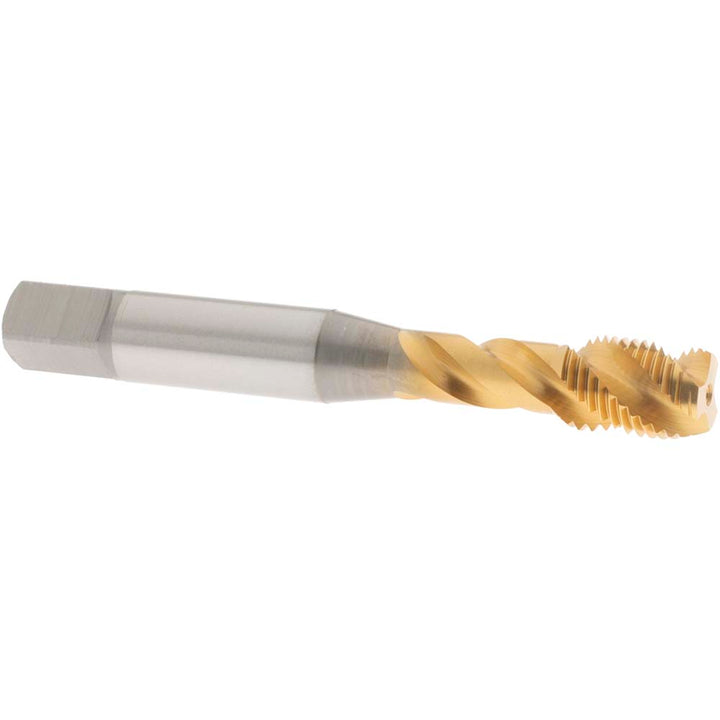

3/8-24 UNF Vanadium High-Speed Steel Tap, TiN - OSG 1733105
MFR# 1733105Series 303
$39.14List $50.21
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-24
CoatingTiN
Description
The OSG 1733105 is a 3/8-24 UNF Vanadium High-Speed Steel tap with a TiN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit3B
Coating finishTiN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationStainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length (mm)54
Number of flutes3
Overall length in2-15/16
Shank diameter (mm)12.192
Shank length0.3810
Square length0.4375
Square size0.286
Threads per inch24
Thread directionRight Hand
Thread length0.5
Thread limitH3
Thread size in3/8-24
Thread standardUNF
