OSG

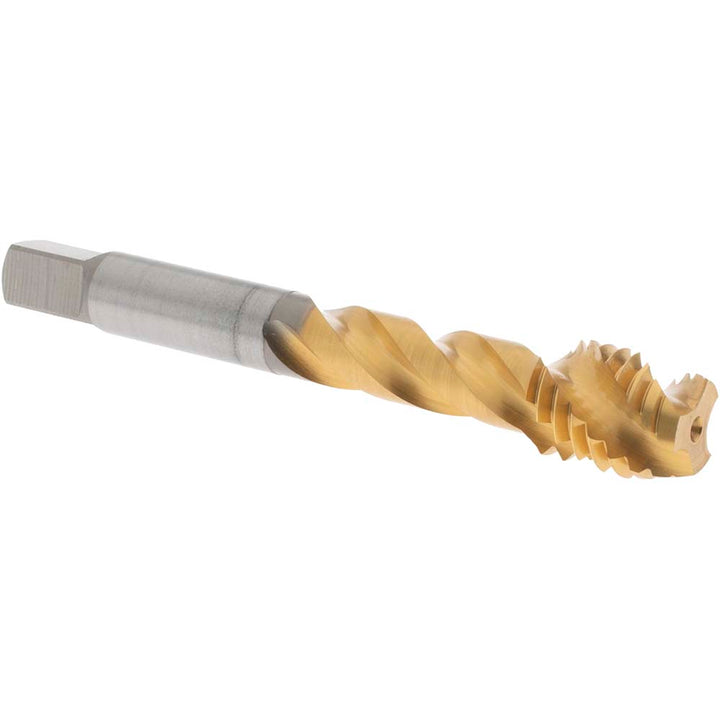

1/2-13 UNC Vanadium High-Speed Steel Tap, TiN - OSG 1733405
MFR# 1733405Series 303
$61.10List $78.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/2-13
CoatingTiN
Description
The OSG 1733405 is a 1/2-13 UNC Vanadium High-Speed Steel tap with a TiN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit3B
Coating finishTiN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationStainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length (mm)16
Number of flutes3
Overall length in3-3/8
Shank diameter (mm)3.5814
Shank length0.3670
Square length0.4375
Square size0.275
Threads per inch13
Thread directionRight Hand
Thread length0.614
Thread limitH3
Thread size in1/2-13
Thread standardUNC
