OSG

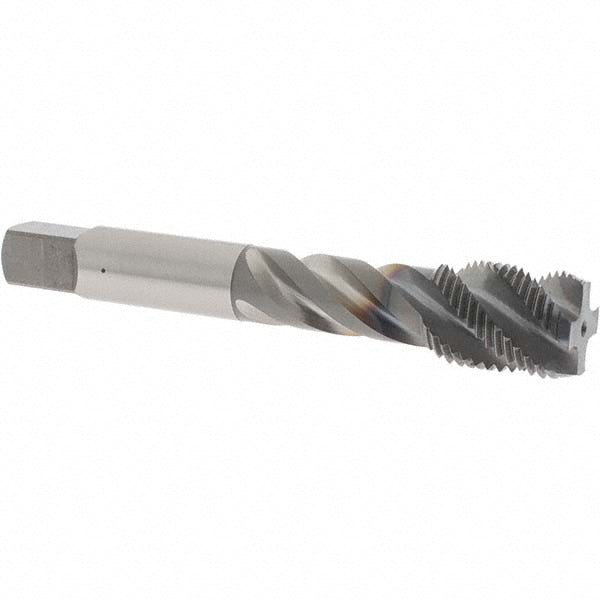

5/8-18 UNF Vanadium High-Speed Steel Tap - OSG 1733708
MFR# 1733708Series 303
$116.72List $149.69
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size5/8-18
Description
The OSG 1733708 is a 5/8-18 UNF Vanadium High-Speed Steel tap. 4 flutes.
Specifications
ChamferModified Bottoming
Class of fit3B
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationStainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length0.685
Number of flutes4
Overall length in3-13/16
OversizeNo
Shank diameter0.141
Square length0.5625
Square size0.36
Threads per inch18
Thread directionRight Hand
Thread length0.728
Thread limitH3
Thread size in5/8-18
Thread standardUNF
