OSG
3/4-10 UNC Vanadium High-Speed Steel Tap, Steam Oxide - OSG 1733801
MFR# 1733801Series 303
$130.13List $166.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/4-10
CoatingSteam Oxide
Description

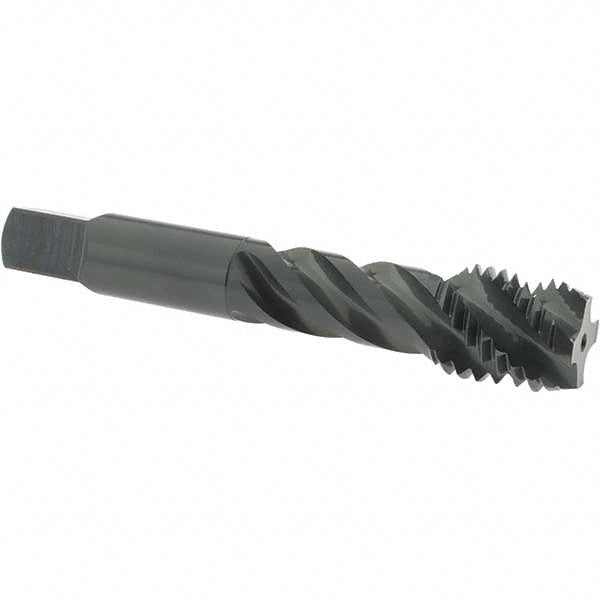

The OSG 1733801 is a 3/4-10 UNC Vanadium High-Speed Steel tap with a Steam Oxide finish. 4 flutes.
Specifications
ChamferModified Bottoming
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationStainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length2.433
Number of flutes4
Overall length in4-1/4
OversizeNo
Shank diameter0.59
Square length0.6875
Square size0.442
Threads per inch10
Thread directionRight Hand
Thread length0.799
Thread limitH3
Thread size in3/4-10
Thread standardUNC
