OSG

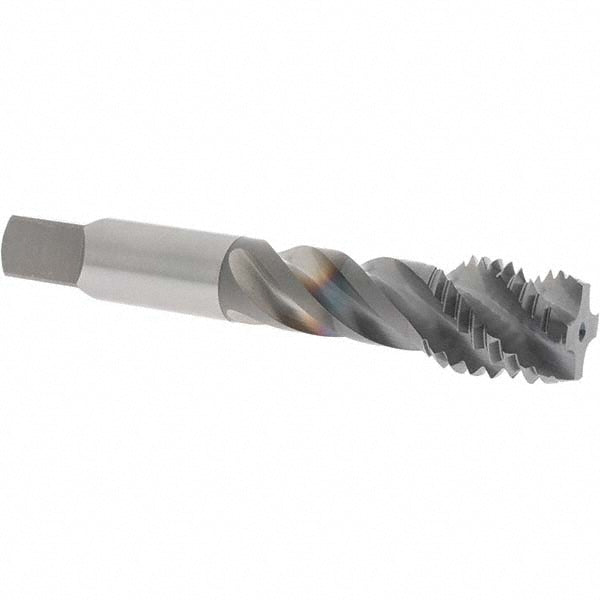

3/4-10 UNC Vanadium High-Speed Steel Tap, TiCN - OSG 1733808
MFR# 1733808Series 303
$149.11List $191.24
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/4-10
CoatingTiCN
Description
The OSG 1733808 is a 3/4-10 UNC Vanadium High-Speed Steel tap with a TiCN finish. 4 flutes.
Specifications
ChamferModified Bottoming
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationStainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length1.126
Number of flutes4
Overall length in4-1/4
OversizeNo
Shank diameter0.318
Square length0.6875
Square size0.442
Threads per inch10
Thread directionRight Hand
Thread length0.799
Thread limitH3
Thread size in3/4-10
Thread standardUNC
