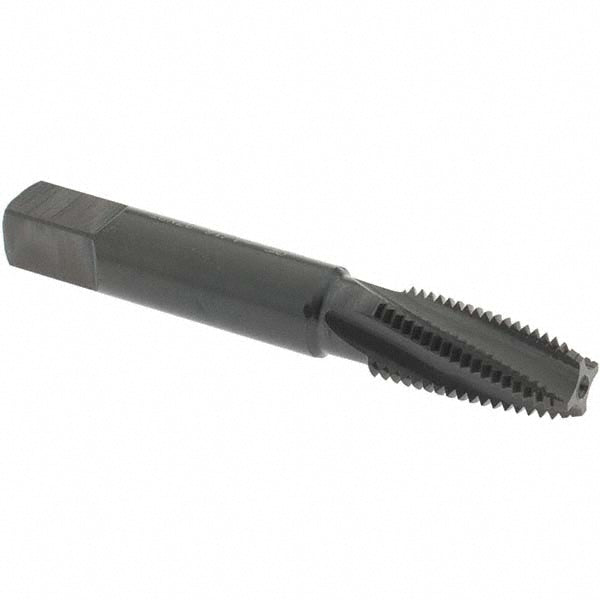

1/16-27 NPT Vanadium High-Speed Steel Tap, Oxide - OSG 1735001
MFR# 1735001Series 308
$42.13List $54.03
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1/16-27
CoatingOxide
Description
The OSG 1735001 is a 1/16-27 NPT Vanadium High-Speed Steel tap with a Oxide finish. 4 flutes.
Specifications
ApplicationTapping
ChamferModified Bottoming
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Helix angle15
MaterialVanadium High-Speed Steel
Material applicationCarbon Steel; Hardened Steel; Stainless Steel
Number of flutes4
Overall length in2-1/8
Projection0.3120
Shank diameter0.3125
Square length in0.375
Square size0.2340
Threads per inch27
Thread length in11/16
Thread size in1/16-27
Thread standardNPT
