OSG

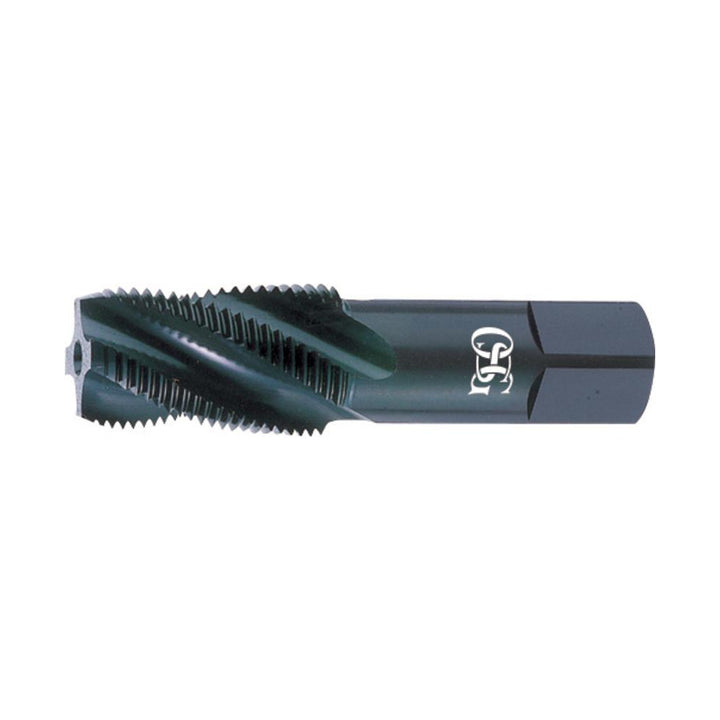

1-11-1/2 NPT Vanadium High-Speed Steel Tap, Oxide - OSG 1735701
MFR# 1735701Series 308
$207.39List $265.98
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Thread size1-11-1/2
CoatingOxide
Description
The OSG 1735701 is a 1-11-1/2 NPT Vanadium High-Speed Steel tap with a Oxide finish. 5 flutes.
Specifications
ApplicationTapping
ChamferModified Bottoming
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Helix angle15
MaterialVanadium High-Speed Steel
Material applicationCarbon Steel; Hardened Steel; Stainless Steel
Number of flutes5
Overall length in3-3/4
Projection0.6780
Shank diameter1.1250
Square length in0.8125
Square size0.8430
Threads per inch11.5
Thread length in1-3/4
Thread size in1-11-1/2
Thread standardNPT
