OSG

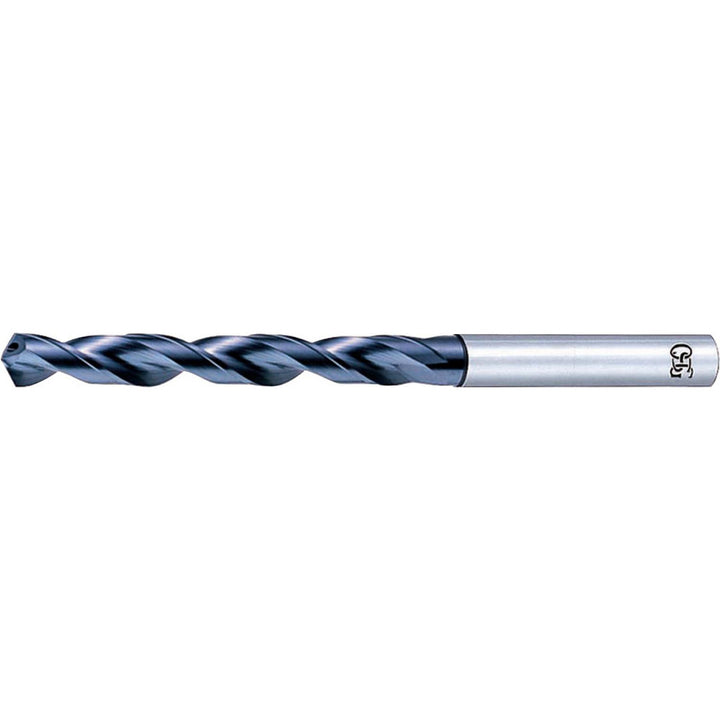

23/64" Cobalt Drill Bit, V, 120° point - OSG 17359408
MFR# 17359408Series 1700
$209.60List $268.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size23/64
Flutes2
Description
The OSG 17359408 is a 23/64" Cobalt drill bit with a V finish, 120° point. 3-1/2 flute length, 5-5/16 overall length. Series 1700.
Specifications
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.022 mm
Drill bit finish coatingV
Drill bit gradeHigh Performance
Drill bit materialCobalt
Drill bit size in23/64
Drill bit size range0.3500 - 0.4000
Drill point angle degrees120
Flute length in3-1/2
Flute typeSpiral
Number of flutes2
Overall length in5-5/16
Shank diameter in23/64
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
