OSG

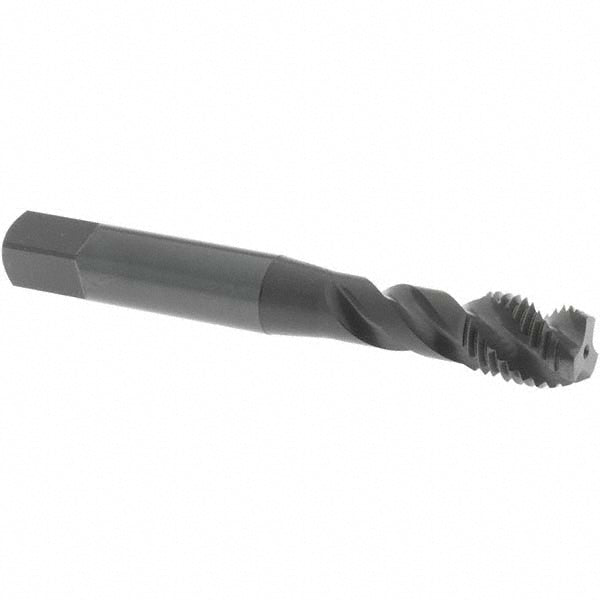

M10x1.25 MF Vanadium High-Speed Steel Tap, Steam Oxide - OSG 1745701
MFR# 1745701Series 343
$52.31List $67.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingSteam Oxide
Description
The OSG 1745701 is a MF Vanadium High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationStainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length1.377
Number of flutes3
Overall length in2-15/16
Shank diameter0.318
Shank length0.3810
Square length0
Square size0
Threads per inch0
Thread directionRight Hand
Thread length1.2500
Thread limitD5
Thread size (mm)M10x1.25
Thread standardMF
