OSG

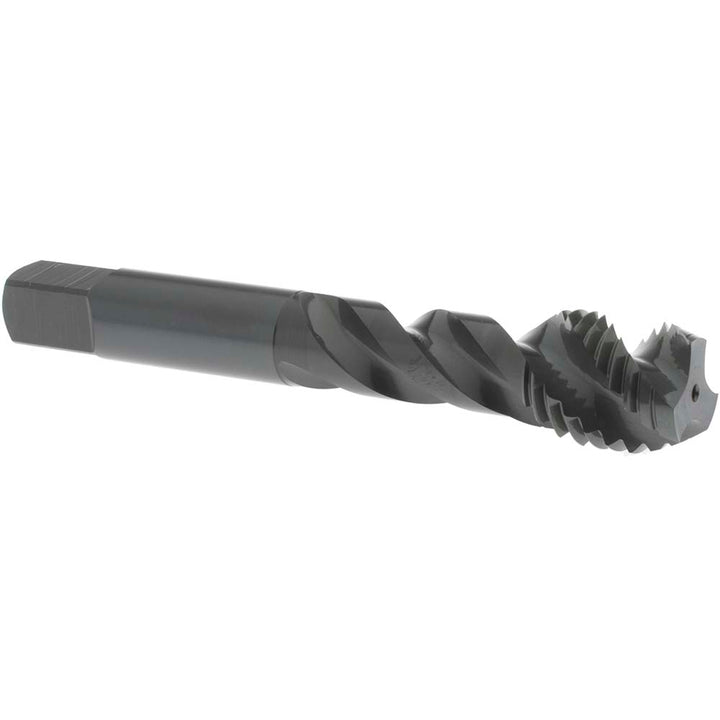

M16x2 M Vanadium High-Speed Steel Tap, Steam Oxide - OSG 1746201
MFR# 1746201Series 343
$101.16List $129.74
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingSteam Oxide
Description
The OSG 1746201 is a M Vanadium High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit6H
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationStainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length1.177
Number of flutes3
Overall length in3-13/16
Shank diameter0.255
Shank length0.4800
Square length0
Square size0
Threads per inch0
Thread directionRight Hand
Thread length1.8125
Thread limitD7
Thread size (mm)M16x2
Thread standardM
