OSG

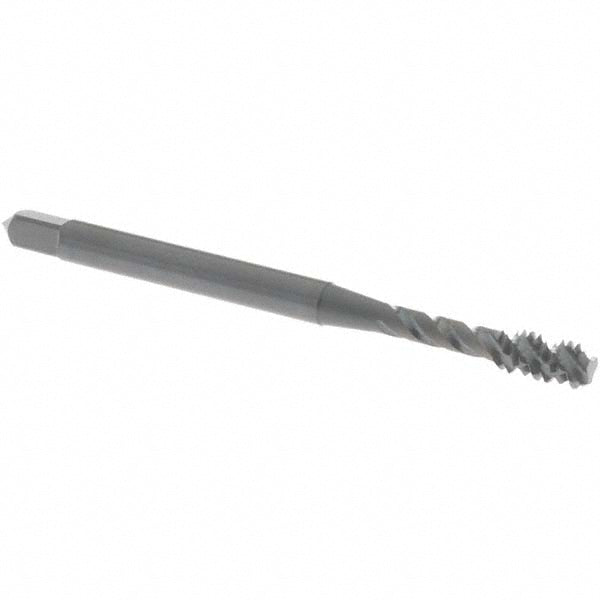

#6-32 UNC Vanadium High-Speed Steel Tap, Steam Oxide - OSG 1746801
MFR# 1746801Series 303
$25.44List $32.62
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#6-32
CoatingSteam Oxide
Description
The OSG 1746801 is a #6-32 UNC Vanadium High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferBottoming
Class of fit2B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationStainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length (mm)49.1
Number of flutes3
Overall length in2
Shank diameter (mm)9.3218
Shank length0.1410
Square length0.1875
Square size0.11
Threads per inch32
Thread directionRight Hand
Thread length0.248
Thread limitH5
Thread size in#6-32
Thread standardUNC
