OSG

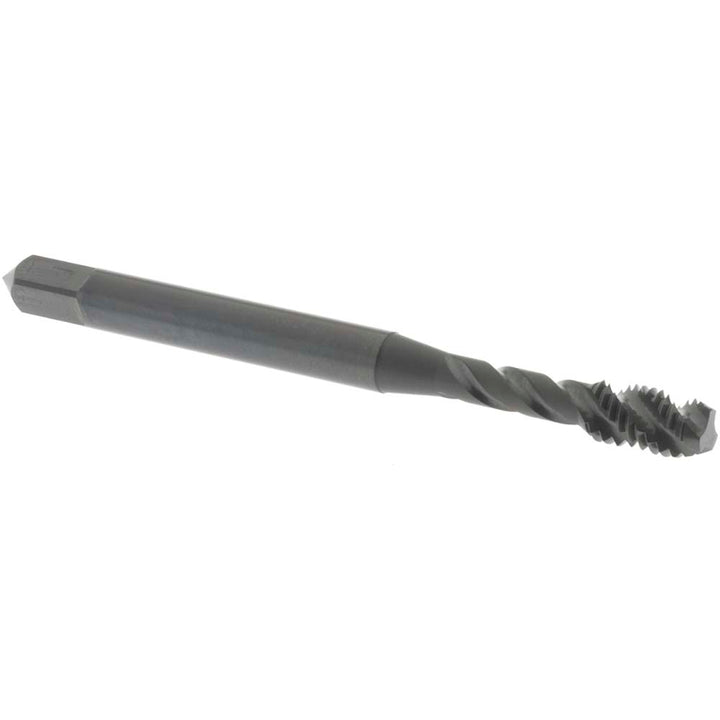

#10-32 UNF Vanadium High-Speed Steel Tap, Steam Oxide - OSG 1747701
MFR# 1747701Series 303
$26.73List $33.68
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-32
CoatingSteam Oxide
Description
The OSG 1747701 is a #10-32 UNF Vanadium High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationStainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Number of flutes3
Overall length in2-3/8
Shank diameter (mm)4.2672
Shank length0.1940
Square length0.25
Square size0.152
Threads per inch32
Thread directionRight Hand
Thread length0.327
Thread limitH7
Thread size in#10-32
Thread standardUNF
