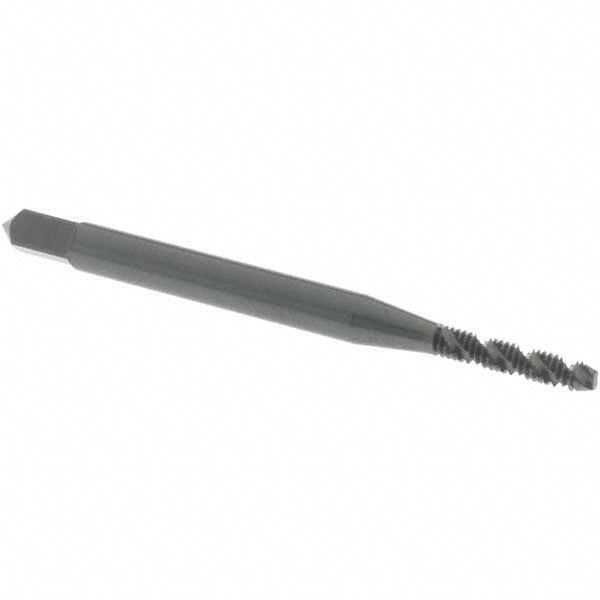

#2-56 UNC Vanadium High-Speed Steel Tap, Steam Oxide - OSG 1748901
MFR# 1748901Series 303
$43.08List $55.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#2-56
CoatingSteam Oxide
Description
The OSG 1748901 is a #2-56 UNC Vanadium High-Speed Steel tap with a Steam Oxide finish. 2 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationStainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length1.2520
Number of flutes2
Overall length in1-3/4
Shank diameter0.3810
Shank length0.1410
Square length0.1875
Square size0.1100
Threads per inch56
Thread directionRight Hand
Thread length0.4370
Thread limitH2
Thread size in#2-56
Thread standardUNC
