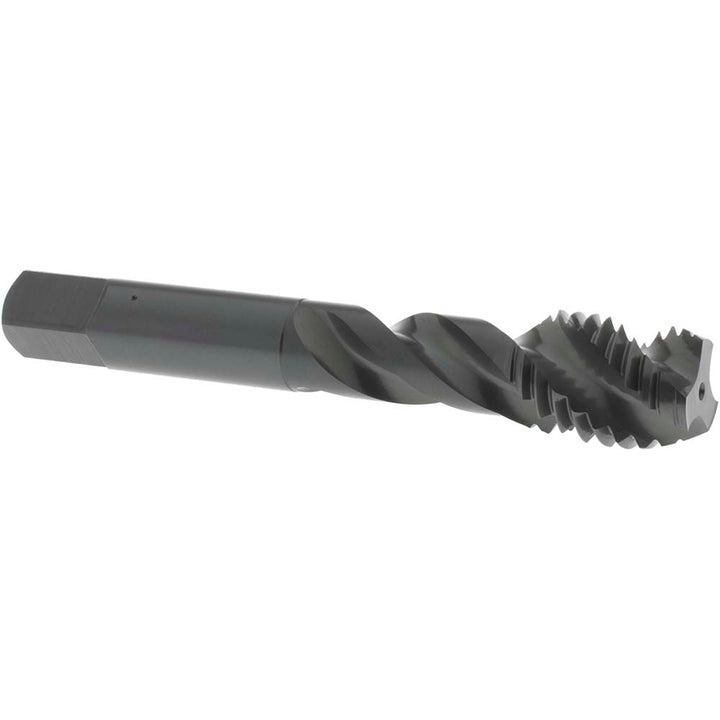

5/8-11 UNC Vanadium High-Speed Steel Tap, Steam Oxide - OSG 1749301
MFR# 1749301Series 303
$101.84List $130.61
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/8-11
CoatingSteam Oxide
Description
The OSG 1749301 is a 5/8-11 UNC Vanadium High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationStainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Number of flutes3
Overall length in3-13/16
Shank diameter0.194
Shank length0.4800
Square length0.5625
Square size0.36
Threads per inch11
Thread directionRight Hand
Thread length0.728
Thread limitH7
Thread size in5/8-11
Thread standardUNC
