OSG

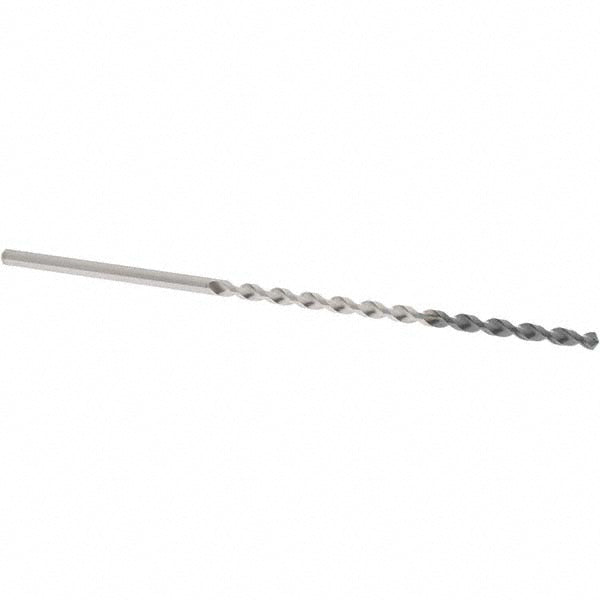

0.1406" Cobalt Drill Bit, WXL, 120° point - OSG 17517611
MFR# 17517611Series 1750
$59.60List $76.44
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingWXL
Description
The OSG 17517611 is a 0.1406" Cobalt drill bit with a WXL finish, 120° point. Series 1750.
Specifications
Coating finishWXL
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit gradeHigh Performance
Drill bit size0.1406
Drill point angle120
Flute length (mm)82.00
Flute typeSpiral
Material gradeM6K
Number of flutes2
Overall length (mm)130.00
Point typeStandard
Shank diameter in9/64
Shank typeStraight-Cylindrical
Spiral typeFast
Tool materialCobalt
Web configurationTapered
Web thinningR-Thinned
