OSG

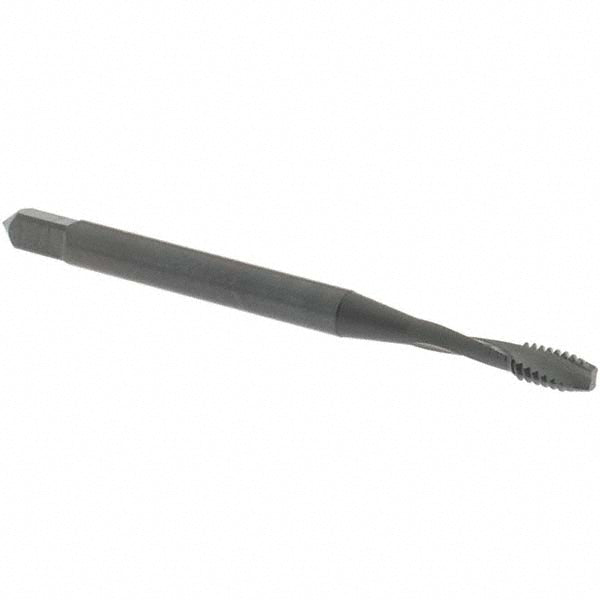

#4-40 UNC Powdered Metal Tap, Steam Oxide - OSG 1752001
MFR# 1752001Series 313
$37.36List $47.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#4-40
CoatingSteam Oxide
Description
The OSG 1752001 is a #4-40 UNC Powdered Metal tap with a Steam Oxide finish. 2 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B; 3B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle15
MaterialPowdered Metal
Material applicationAlloy Steel; Stainless Steel; Hardened Steel; Titanium; High-Nickel Alloy
Neck length0.559
Number of flutes2
Overall length in1-7/8
OversizeNo
Shank diameter0.141
Square length0.1875
Square size0.11
Threads per inch40
Thread directionRight Hand
Thread length0.157
Thread limitH2
Thread size in#4-40
Thread standardUNC
