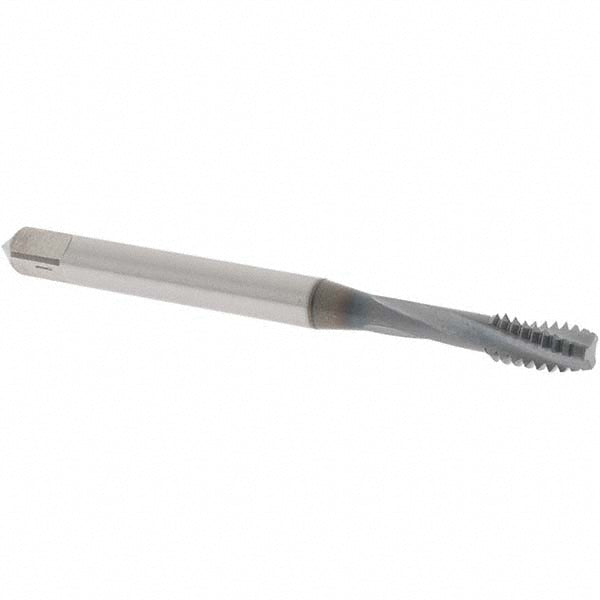

#10-24 UNC Powdered Metal Tap, TiCN - OSG 1752408
MFR# 1752408Series 313
$35.88List $46.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-24
CoatingTiCN
Description
The OSG 1752408 is a #10-24 UNC Powdered Metal tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B; 3B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle15
MaterialPowdered Metal
Material applicationAlloy Steel; Stainless Steel; Hardened Steel; Titanium; High-Nickel Alloy
Neck length1.713
Number of flutes3
Overall length in2-3/8
OversizeNo
Shank diameter0.323
Square length0.25
Square size0.152
Threads per inch24
Thread directionRight Hand
Thread length0.327
Thread limitH3
Thread size in#10-24
Thread standardUNC
