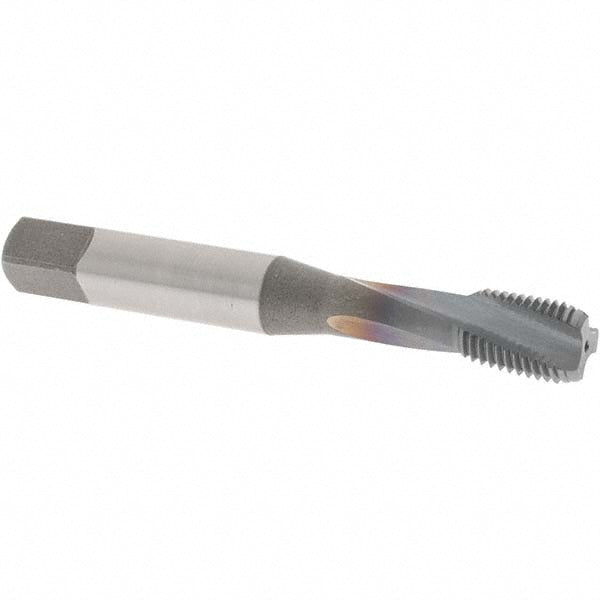

3/8-24 UNF Powdered Metal Tap, TiCN - OSG 1753108
MFR# 1753108Series 313
$48.61List $62.35
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-24
CoatingTiCN
Description
The OSG 1753108 is a 3/8-24 UNF Powdered Metal tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit3B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle15
MaterialPowdered Metal
Material applicationAlloy Steel; Stainless Steel; Hardened Steel; Titanium; High-Nickel Alloy
Neck length2.433
Number of flutes3
Overall length in2-15/16
OversizeNo
Shank diameter0.59
Square length0.4375
Square size0.286
Threads per inch24
Thread directionRight Hand
Thread length0.5
Thread limitH3
Thread size in3/8-24
Thread standardUNF
