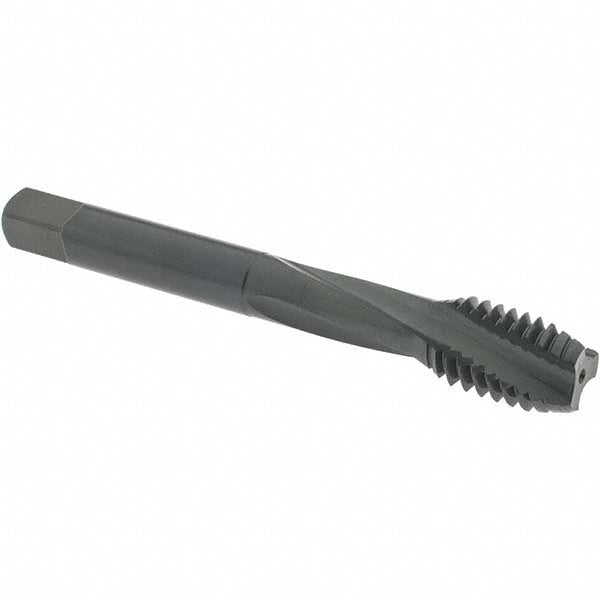

7/16-14 UNC Powdered Metal Tap, Steam Oxide - OSG 1753201
MFR# 1753201Series 313
$52.53List $67.37
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size7/16-14
CoatingSteam Oxide
Description
The OSG 1753201 is a 7/16-14 UNC Powdered Metal tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle15
MaterialPowdered Metal
Material applicationAlloy Steel; Stainless Steel; Hardened Steel; Titanium; High-Nickel Alloy
Neck length1.713
Number of flutes3
Overall length in3-5/32
OversizeNo
Shank diameter0.323
Square length0.40625
Square size0.242
Threads per inch14
Thread directionRight Hand
Thread length0.571
Thread limitH3
Thread size in7/16-14
Thread standardUNC
