3/4-16 UNF Powdered Metal Tap, Steam Oxide - OSG 1753901
MFR# 1753901Series 313
$149.79List $192.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/4-16
CoatingSteam Oxide
Description

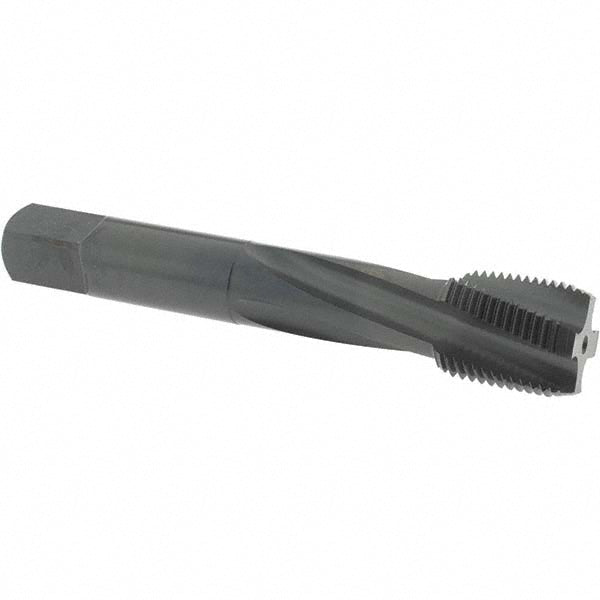

The OSG 1753901 is a 3/4-16 UNF Powdered Metal tap with a Steam Oxide finish. 4 flutes.
Specifications
ChamferModified Bottoming
Class of fit3B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle15
MaterialPowdered Metal
Material applicationAlloy Steel; Stainless Steel; Hardened Steel; Titanium; High-Nickel Alloy
Neck length2.433
Number of flutes4
Overall length in4-1/4
OversizeNo
Shank diameter0.59
Square length0.6875
Square size0.442
Threads per inch16
Thread directionRight Hand
Thread length0.799
Thread limitH3
Thread size in3/4-16
Thread standardUNF
