OSG

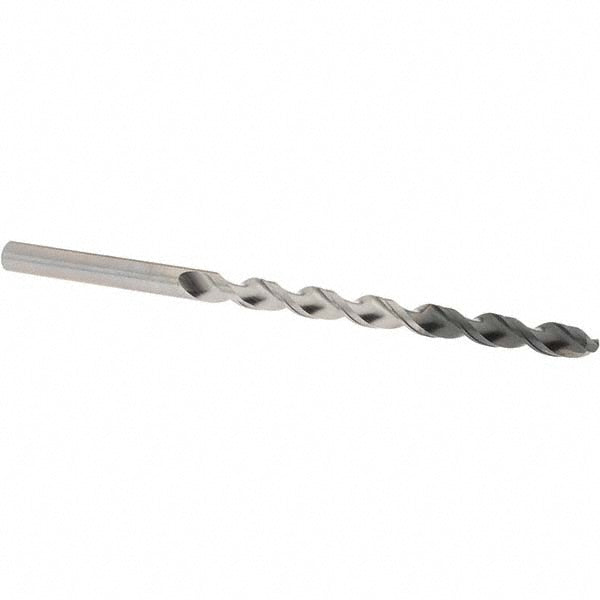

5/16" Cobalt Drill Bit, WXL, 120° point - OSG 17549611
MFR# 17549611Series 1750
$118.74List $149.64
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/16
CoatingWXL
Description
The OSG 17549611 is a 5/16" Cobalt drill bit with a WXL finish, 120° point. Series 1750.
Specifications
Coating finishWXL
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.022 mm
Drill bit gradeHigh Performance
Drill bit size in5/16
Drill point angle degrees120
Flute length (mm)105.00
Flute typeSpiral
Material applicationAlloy Steel; Aluminum; Carbon Steel; Cast Iron; Die Steel; Hardened Steel; Stainless Steel
Material gradeM-6K
Overall length (mm)155.00
Point typeStandard
Shank diameter in5/16
Shank typeStraight
Spiral typeFast
Tool materialCobalt
Web configurationTapered
Web thinningR-Thinned
