OSG

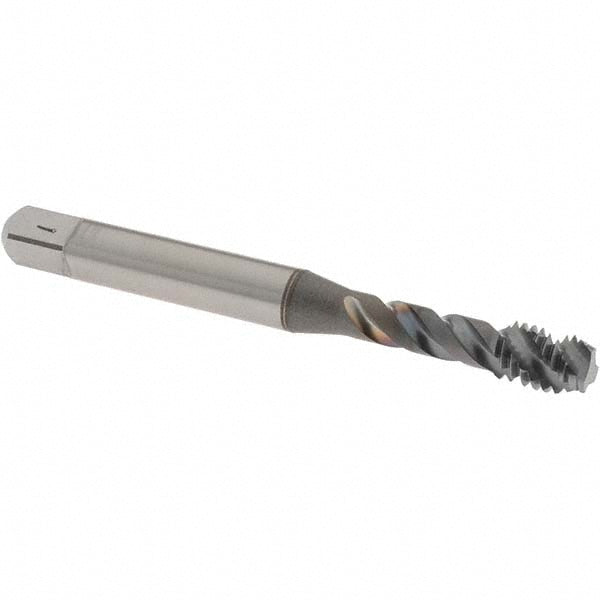

M6x1 M Cobalt Tap, TiCN - OSG 1756008
MFR# 1756008Series 343
$37.89List $48.59
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiCN
Description
The OSG 1756008 is a M Cobalt tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit6H
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialCobalt
Material applicationStainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length (mm)25.4
Number of flutes3
Overall length in2-1/2
Shank diameter (mm)6.477
Square length0
Square size0
Threads per inch0
Thread directionRight Hand
Thread length (mm)7.999999999999999
Thread limitD5
Thread size (mm)M6x1
Thread standardM
