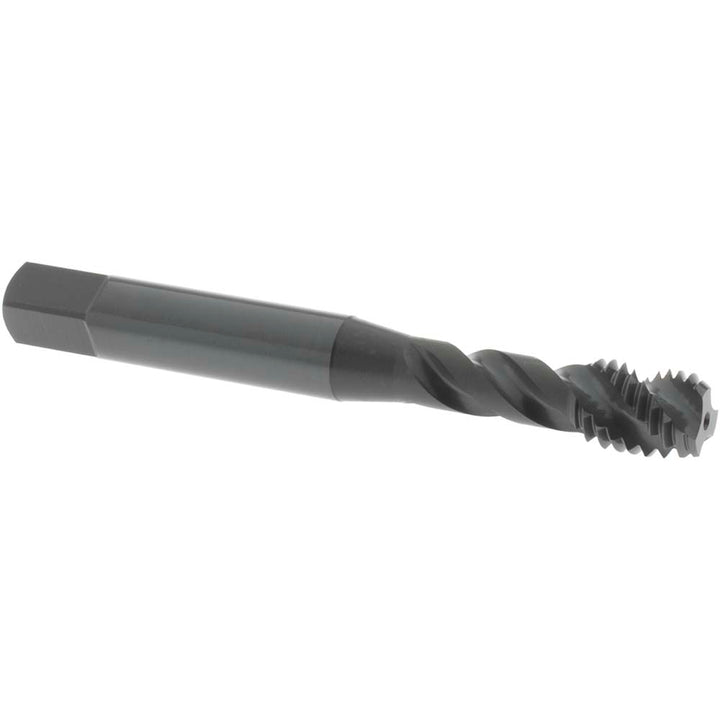

M8x1.25 M Vanadium High-Speed Steel Tap, Steam Oxide - OSG 1756201
MFR# 1756201Series 343
$36.74List $47.11
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingSteam Oxide
Description
The OSG 1756201 is a M Vanadium High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferBottoming
Class of fit6H
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationStainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Number of flutes3
Overall length in2-23/32
Shank diameter (mm)3.5814
Shank length0.3180
Square length0
Square size0
Threads per inch0
Thread directionRight Hand
Thread length1.1250
Thread limitD5
Thread size (mm)M8x1.25
Thread standardM
