OSG

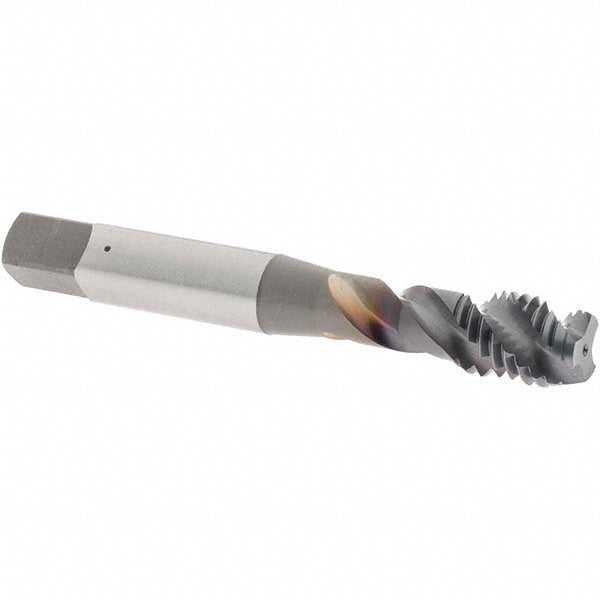

M10x1.5 M Vanadium High-Speed Steel Tap, TiCN - OSG 1756608
MFR# 1756608Series 343
$59.97List $76.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiCN
Description
The OSG 1756608 is a M Vanadium High-Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit6H
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationStainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length2.126
Number of flutes3
Overall length in2-15/16
OversizeNo
Shank diameter0.48
Square length0
Square size0
Threads per inch0
Thread directionRight Hand
Thread length (mm)12
Thread limitD6
Thread size (mm)M10x1.5
Thread standardM
