OSG

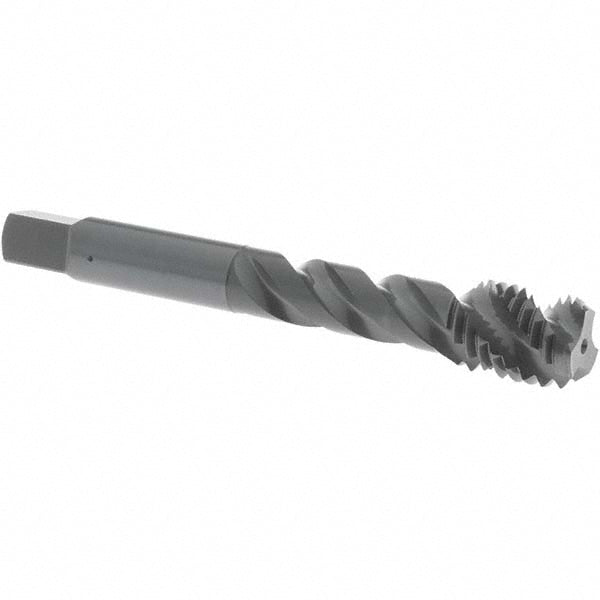

M12x1.75 M Vanadium High-Speed Steel Tap, Steam Oxide - OSG 1756801
MFR# 1756801Series 343
$62.25List $79.84
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingSteam Oxide
Description
The OSG 1756801 is a M Vanadium High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferBottoming
Class of fit6H
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationStainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length (mm)31.8
Number of flutes3
Overall length in3-3/8
Shank diameter (mm)9.6774
Shank length0.3670
Square length0
Square size0
Threads per inch0
Thread directionRight Hand
Thread length1.6563
Thread limitD6
Thread size (mm)M12x1.75
Thread standardM
