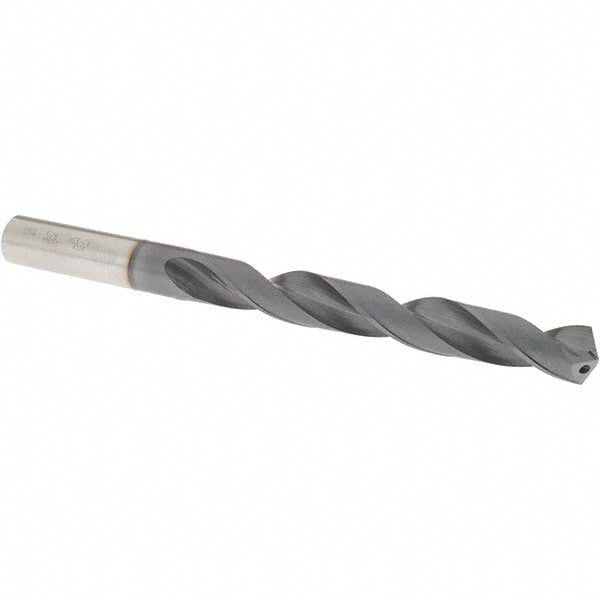

5/8" Cobalt Drill Bit, V, 120° point - OSG 17625008

OSG

5/8" Cobalt Drill Bit, V, 120° point - OSG 17625008

MFR# 17625008Series 1700

$353.29List $453.11 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size5/8
Flutes2

Description

The OSG 17625008 is a 5/8" Cobalt drill bit with a V finish, 120° point. Suited for steel, alloy steel, stainless steel. 5-3/16 flute length, 7-9/16 overall length. Series 1700.

Specifications

Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.027 mm
Drill bit finish coatingV
Drill bit gradeHigh Performance
Drill bit materialCobalt
Drill bit size in5/8
Drill bit size range0.5000 - 0.6500
Drill point angle degrees120
Flute length in5-3/16
Flute typeSpiral
Number of flutes2
Overall length in7-9/16
Primary workpiece materialSteel; Alloy Steel; Stainless Steel
Shank diameter in5/8
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
