OSG

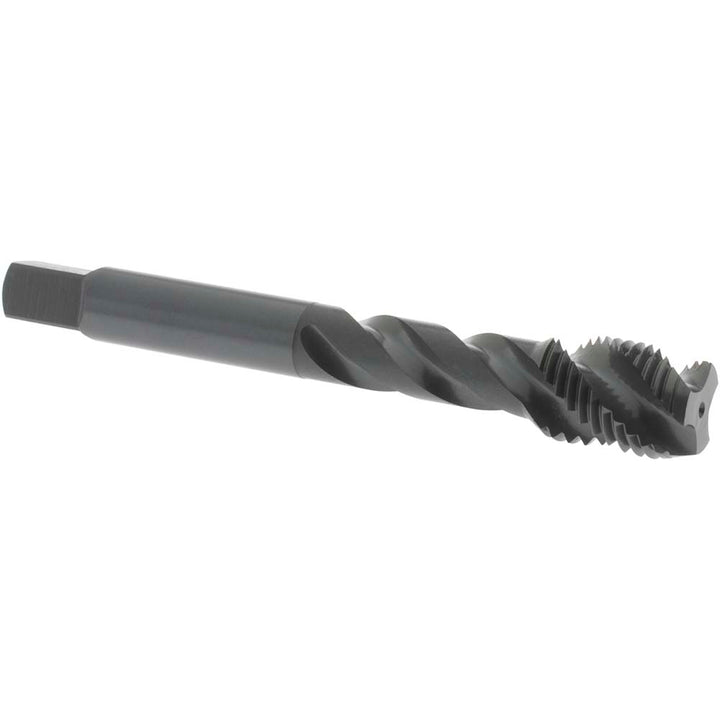

7/16-20 UNF Vanadium High-Speed Steel Tap, Steam Oxide - OSG 1762801
MFR# 1762801Series 303
$45.55List $58.42
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size7/16-20
CoatingSteam Oxide
Description
The OSG 1762801 is a 7/16-20 UNF Vanadium High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationStainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length (mm)16
Number of flutes3
Overall length in3-5/32
Shank diameter (mm)3.5814
Shank length0.3230
Square length0.40625
Square size0.242
Threads per inch20
Thread directionRight Hand
Thread length0.571
Thread limitH7
Thread size in7/16-20
Thread standardUNF
