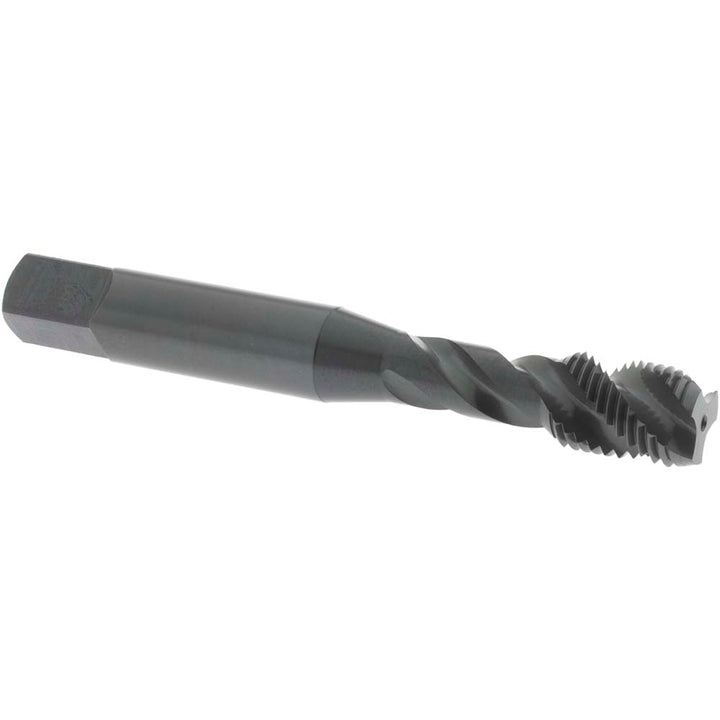

3/8-24 UNF Vanadium High-Speed Steel Tap, Steam Oxide - OSG 1762901
MFR# 1762901Series 303
$31.70List $40.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-24
CoatingSteam Oxide
Description
The OSG 1762901 is a 3/8-24 UNF Vanadium High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationStainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length1.933
Number of flutes3
Overall length in2-23/32
Shank diameter0.367
Shank length0.3180
Square length0.4375
Square size0.286
Threads per inch24
Thread directionRight Hand
Thread length0.5
Thread limitH5
Thread size in3/8-24
Thread standardUNF
