OSG

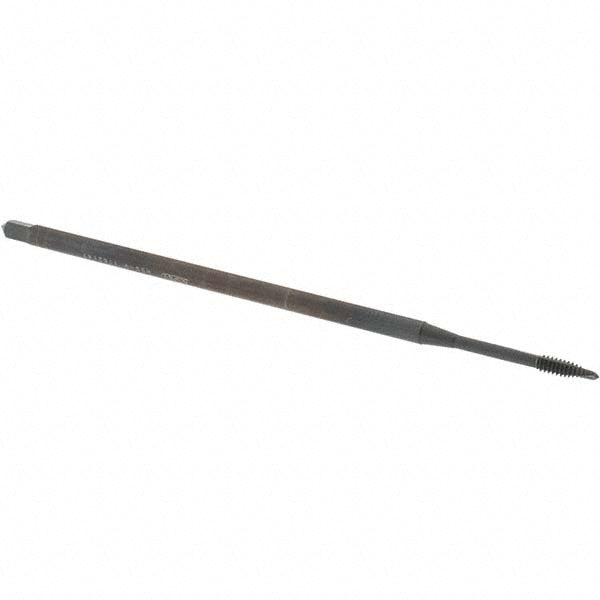

#4-40 UNC Vanadium High-Speed Steel Spiral Point Tap, Steam Oxide - OSG 1764001
MFR# 1764001Series 397
$54.22List $69.54
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#4-40
CoatingSteam Oxide
Description
The OSG 1764001 is a #4-40 UNC Vanadium High-Speed Steel Spiral Point tap with a Steam Oxide finish. 2 flutes.
Specifications
ApplicationThreading
ChamferPlug
Class of fit2B; 3B
Coating finishSteam Oxide
Flute directionRight Hand
Helix angle0
MaterialVanadium High-Speed Steel
Material applicationCarbon Steel; Hardened Steel; Stainless Steel
Neck length0.8430
Number of flutes2
Overall length in4
Reduced shankYes
Shank diameter0.141
Square length0.1875
Square size0.11
Tap typeSpiral Point
Thread directionRight Hand
Thread length0.2953
Thread limitH2
Thread size in#4-40
Thread standardUNC
