OSG

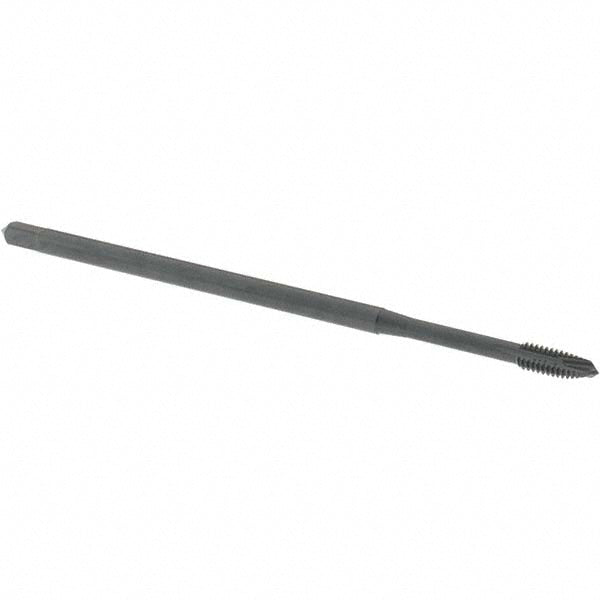

#8-32 UNC Vanadium High-Speed Steel Spiral Point Tap, Steam Oxide - OSG 1764301
MFR# 1764301Series 397
$53.51List $68.63
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#8-32
CoatingSteam Oxide
Description
The OSG 1764301 is a #8-32 UNC Vanadium High-Speed Steel Spiral Point tap with a Steam Oxide finish. 3 flutes.
Specifications
ApplicationThreading
ChamferPlug
Class of fit2B
Coating finishSteam Oxide
Flute directionRight Hand
Helix angle0
MaterialVanadium High-Speed Steel
Material applicationCarbon Steel; Hardened Steel; Stainless Steel
Neck length1.1250
Number of flutes3
Overall length in4
Reduced shankYes
Shank diameter0.168
Square length0.25
Square size0.131
Tap typeSpiral Point
Thread directionRight Hand
Thread length in1-1/8
Thread limitH3
Thread size in#8-32
Thread standardUNC
