OSG

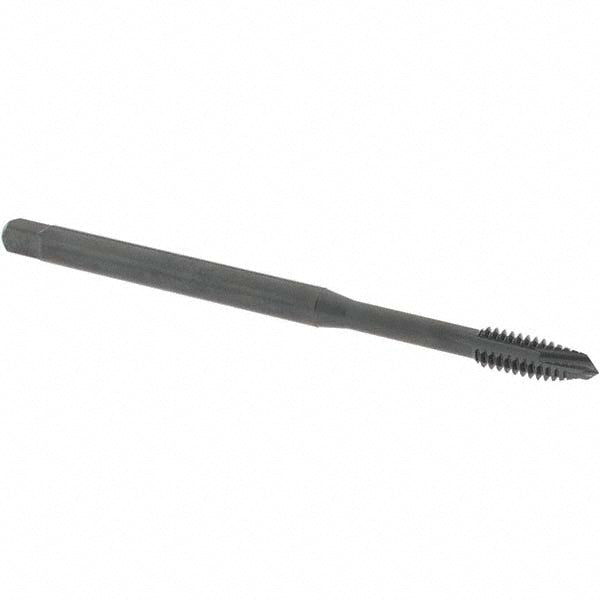

1/4-20 UNC Vanadium High-Speed Steel Spiral Point Tap, Steam Oxide - OSG 1764901
MFR# 1764901Series 397
$43.25List $55.47
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-20
CoatingSteam Oxide
Description
The OSG 1764901 is a 1/4-20 UNC Vanadium High-Speed Steel Spiral Point tap with a Steam Oxide finish. 3 flutes.
Specifications
ApplicationThreading
ChamferPlug
Class of fit3B
Coating finishSteam Oxide
Flute directionRight Hand
Helix angle0
MaterialVanadium High-Speed Steel
Material applicationCarbon Steel; Hardened Steel; Stainless Steel
Neck length1.5000
Number of flutes3
Overall length in4
Reduced shankYes
Shank diameter0.255
Square length0.3125
Square size0.191
Tap typeSpiral Point
Thread directionRight Hand
Thread length in1-1/2
Thread limitH3
Thread size in1/4-20
Thread standardUNC
