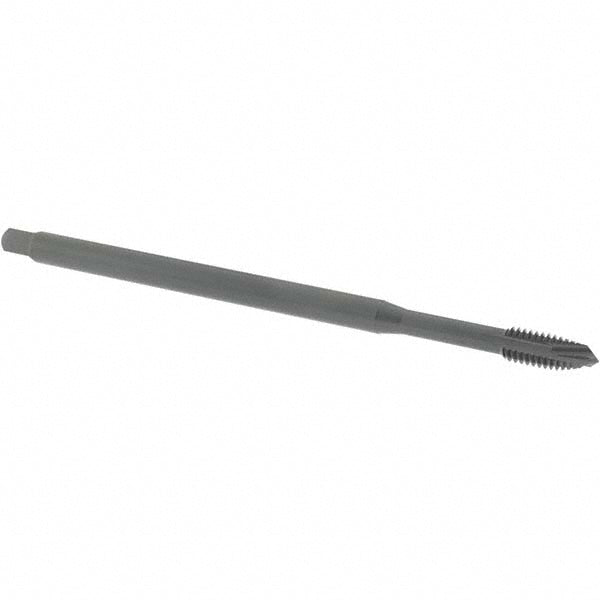

5/16-18 UNC Vanadium High-Speed Steel Spiral Point Tap, Steam Oxide - OSG 1765201
MFR# 1765201Series 397
$56.27List $72.18
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-18
CoatingSteam Oxide
Description
The OSG 1765201 is a 5/16-18 UNC Vanadium High-Speed Steel Spiral Point tap with a Steam Oxide finish. 3 flutes.
Specifications
ApplicationThreading
ChamferPlug
Class of fit3B
Coating finishSteam Oxide
Flute directionRight Hand
Helix angle0
MaterialVanadium High-Speed Steel
Material applicationCarbon Steel; Hardened Steel; Stainless Steel
Neck length1.6870
Number of flutes3
Overall length in6
Reduced shankYes
Shank diameter0.318
Square length0.375
Square size0.238
Tap typeSpiral Point
Thread directionRight Hand
Thread length0.6654
Thread limitH3
Thread size in5/16-18
Thread standardUNC
