5/8-11 UNC Vanadium High-Speed Steel Spiral Point Tap, Steam Oxide - OSG 1765601
MFR# 1765601Series 397
$90.65List $116.26
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/8-11
CoatingSteam Oxide
Description

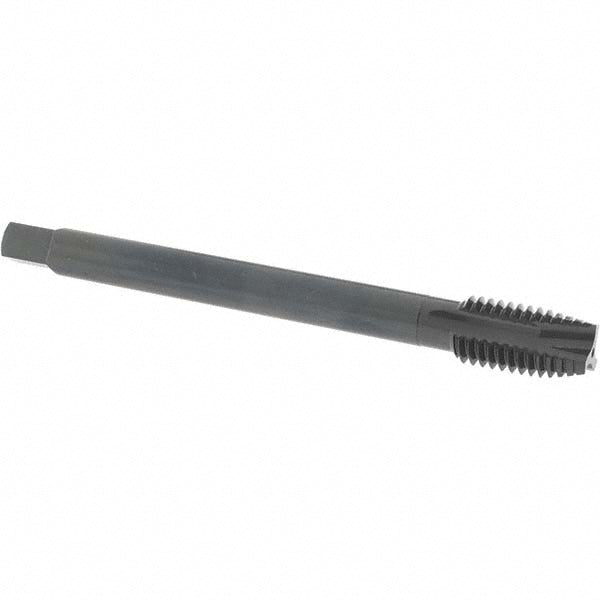

The OSG 1765601 is a 5/8-11 UNC Vanadium High-Speed Steel Spiral Point tap with a Steam Oxide finish. 3 flutes.
Specifications
ApplicationThreading
ChamferPlug
Class of fit3B
Coating finishSteam Oxide
Flute directionRight Hand
Helix angle0
MaterialVanadium High-Speed Steel
Material applicationCarbon Steel; Hardened Steel; Stainless Steel
Neck length1.5620
Number of flutes3
Overall length in6
Reduced shankYes
Shank diameter0.48
Square length0.5625
Square size0.36
Tap typeSpiral Point
Thread directionRight Hand
Thread length1.0906
Thread limitH3
Thread size in5/8-11
Thread standardUNC
