OSG

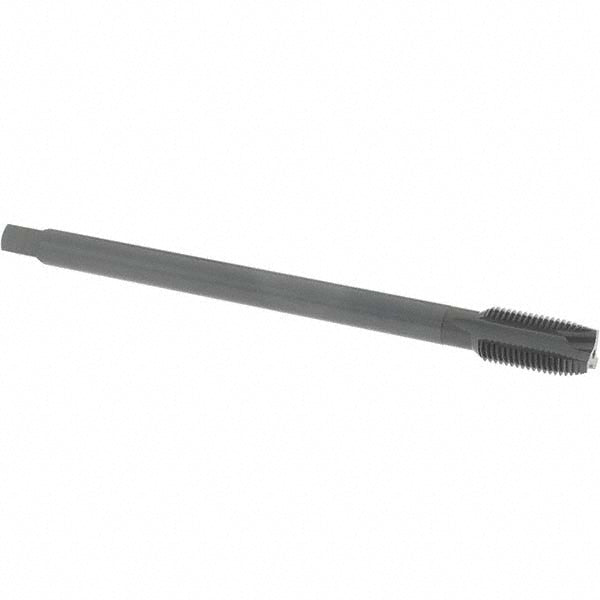

1/2-20 UNF Vanadium High-Speed Steel Spiral Point Tap, Steam Oxide - OSG 1766001
MFR# 1766001Series 397
$67.80List $86.95
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/2-20
CoatingSteam Oxide
Description
The OSG 1766001 is a 1/2-20 UNF Vanadium High-Speed Steel Spiral Point tap with a Steam Oxide finish. 3 flutes.
Specifications
ApplicationThreading
ChamferPlug
Class of fit3B
Coating finishSteam Oxide
Flute directionRight Hand
Helix angle0
MaterialVanadium High-Speed Steel
Material applicationCarbon Steel; Hardened Steel; Stainless Steel
Neck length1.3540
Number of flutes3
Overall length in6
Reduced shankYes
Shank diameter0.367
Square length0.4375
Square size0.275
Tap typeSpiral Point
Thread directionRight Hand
Thread length0.921
Thread limitH3
Thread size in1/2-20
Thread standardUNF
