OSG

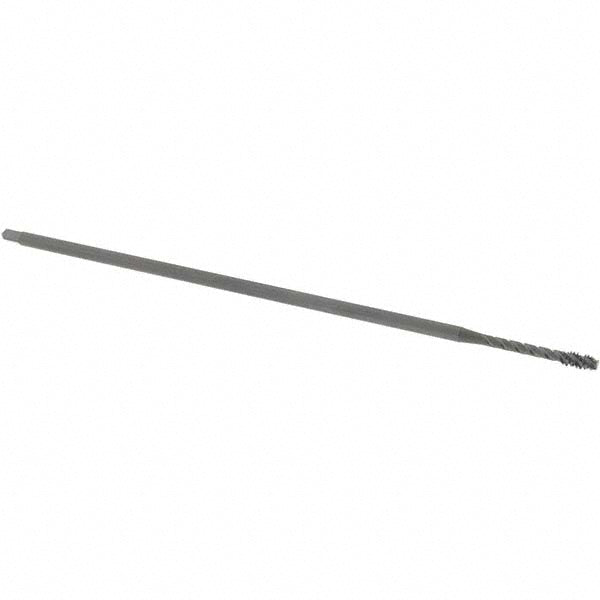

#6-32 UNC Vanadium High-Speed Steel Spiral Flute Tap, Steam Oxide - OSG 1766501
MFR# 1766501Series 398
$71.74List $92.01
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#6-32
CoatingSteam Oxide
Description
The OSG 1766501 is a #6-32 UNC Vanadium High-Speed Steel Spiral Flute tap with a Steam Oxide finish. 3 flutes.
Specifications
ApplicationThreading
ChamferModified Bottoming
Class of fit2B
Coating finishSteam Oxide
Flute directionRight Hand
Helix angle30
MaterialVanadium High-Speed Steel
Material applicationCarbon Steel; Hardened Steel; Stainless Steel
Neck length1.0310
Number of flutes3
Overall length in6
Reduced shankYes
Shank diameter0.141
Square length0.1875
Square size0.11
Tap typeSpiral Flute
Thread directionRight Hand
Thread length0.248031496062992
Thread limitH3
Thread size in#6-32
Thread standardUNC
