OSG

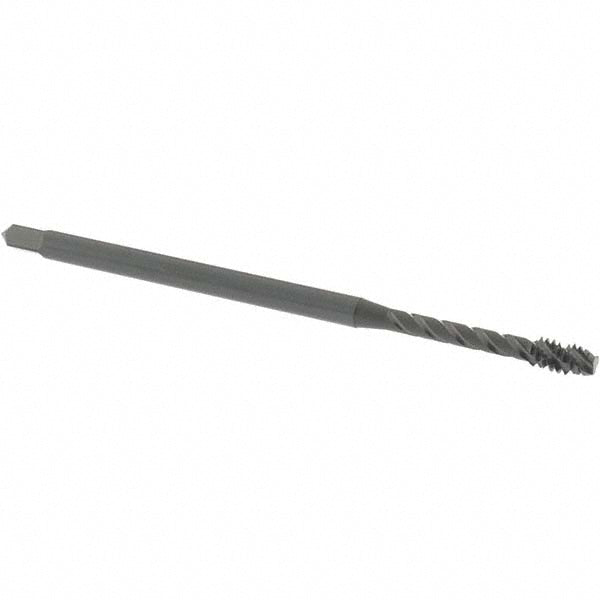

#10-24 UNC Vanadium High-Speed Steel Spiral Flute Tap, Steam Oxide - OSG 1767101
MFR# 1767101Series 398
$58.85List $75.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-24
CoatingSteam Oxide
Description
The OSG 1767101 is a #10-24 UNC Vanadium High-Speed Steel Spiral Flute tap with a Steam Oxide finish. 3 flutes.
Specifications
ApplicationThreading
ChamferModified Bottoming
Class of fit2B; 3B
Coating finishSteam Oxide
Flute directionRight Hand
Helix angle30
MaterialVanadium High-Speed Steel
Material applicationCarbon Steel; Hardened Steel; Stainless Steel
Neck length1.3120
Number of flutes3
Overall length in4
Reduced shankYes
Shank diameter0.194
Square length0.25
Square size0.152
Tap typeSpiral Flute
Thread directionRight Hand
Thread length0.326771653543307
Thread limitH3
Thread size in#10-24
Thread standardUNC
