OSG

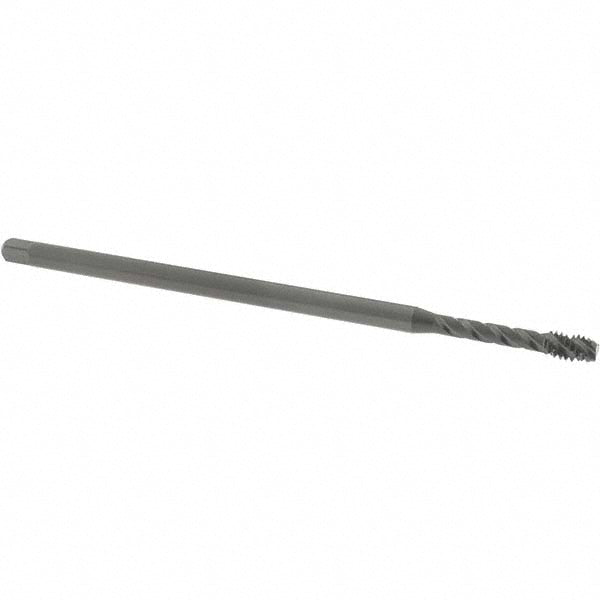

1/4-20 UNC Vanadium High-Speed Steel Spiral Flute Tap, Steam Oxide - OSG 1768101
MFR# 1768101Series 398
$62.12List $79.66
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-20
CoatingSteam Oxide
Description
The OSG 1768101 is a 1/4-20 UNC Vanadium High-Speed Steel Spiral Flute tap with a Steam Oxide finish. 3 flutes.
Specifications
ApplicationThreading
ChamferModified Bottoming
Class of fit3B
Coating finishSteam Oxide
Flute directionRight Hand
Helix angle30
MaterialVanadium High-Speed Steel
Material applicationCarbon Steel; Hardened Steel; Stainless Steel
Neck length1.5000
Number of flutes3
Overall length in6
Reduced shankYes
Shank diameter0.255
Square length0.3125
Square size0.191
Tap typeSpiral Flute
Thread directionRight Hand
Thread length0.397637795275591
Thread limitH3
Thread size in1/4-20
Thread standardUNC
