OSG

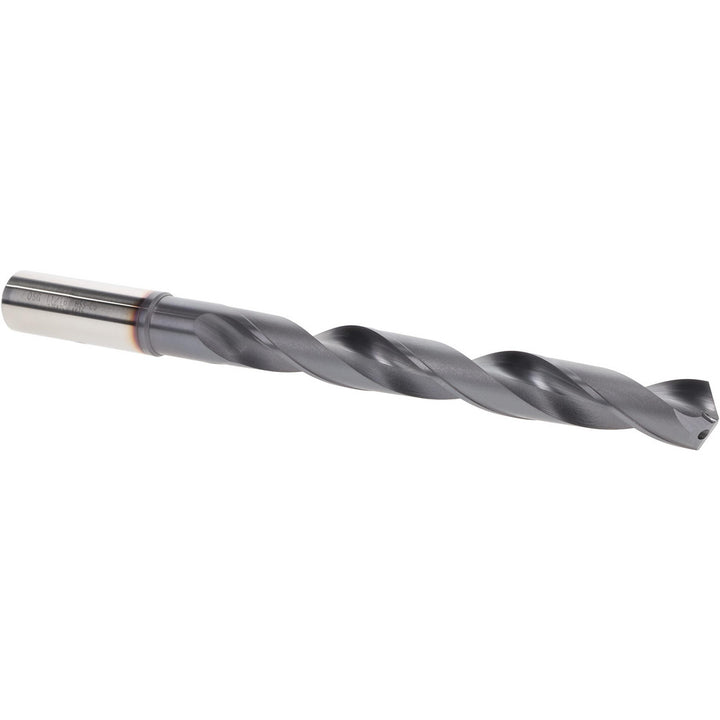

11/16" Cobalt Drill Bit, 120° point - OSG 17687508
MFR# 17687508Series 1700
$397.49List $509.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size11/16
Flutes2
Description
The OSG 17687508 is a 11/16" Cobalt drill bit, 120° point. Suited for steel, alloy steel, stainless steel. 5-5/8 flute length, 8-9/32 overall length. Series 1700.
Specifications
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.027 mm
Drill bit gradeHigh Performance
Drill bit materialCobalt
Drill bit size in11/16
Drill bit size range0.6500+
Drill point angle degrees120
Flute length in5-5/8
Flute typeSpiral
Number of flutes2
Overall length in8-9/32
Primary workpiece materialSteel; Alloy Steel; Stainless Steel
Shank diameter in3/4
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
