OSG
#10-32 UNF Powdered Metal Tap, Steam Oxide - OSG 1770301
MFR# 1770301Series 313NI
$40.76List $52.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-32
CoatingSteam Oxide
Description

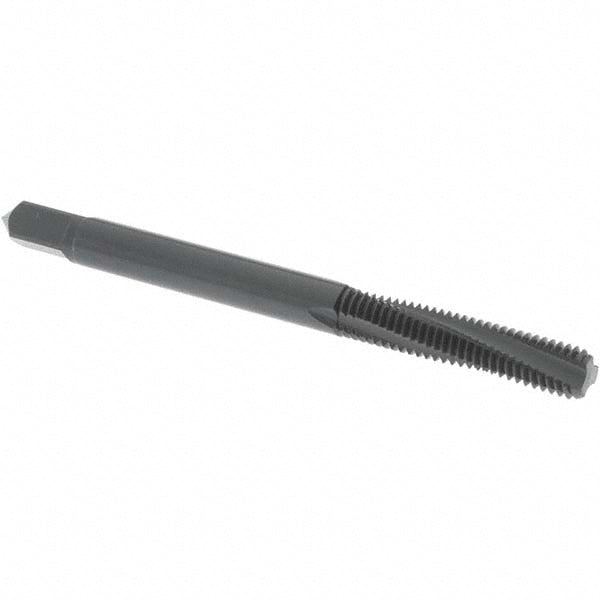

The OSG 1770301 is a #10-32 UNF Powdered Metal tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferBottoming
Class of fit2B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle10
MaterialPowdered Metal
Material applicationStainless Steel; Hardened Steel; Titanium; High-Nickel Alloy
Neck length (mm)54
Number of flutes3
Overall length in2-3/8
Shank diameter (mm)12.192
Shank length0.1940
Square length0.25
Square size0.152
Threads per inch32
Thread directionRight Hand
Thread length0.866
Thread limitH3
Thread size in#10-32
Thread standardUNF
