OSG

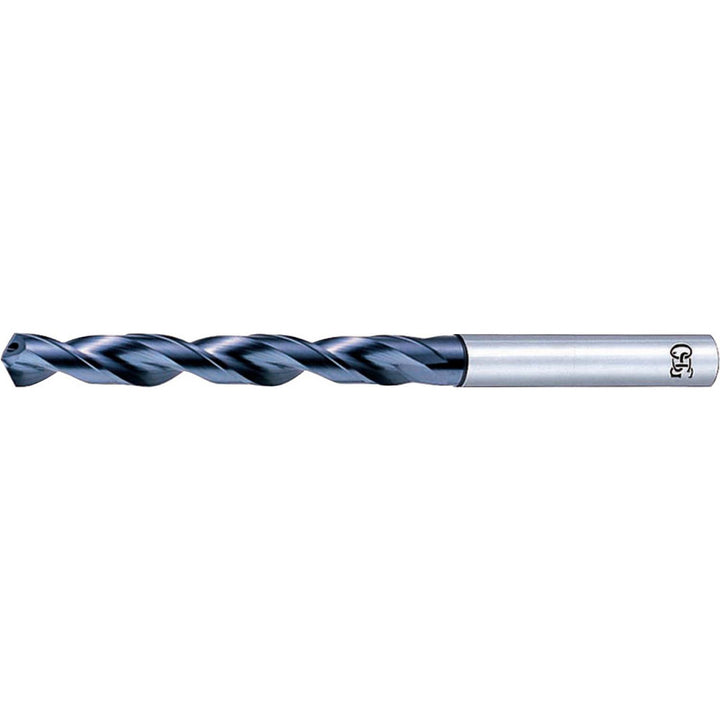

13/16" Cobalt Drill Bit, V, 130° point - OSG 17812508
MFR# 17812508Series 1700
$487.20List $624.85
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size13/16
Flutes2
Description
The OSG 17812508 is a 13/16" Cobalt drill bit with a V finish, 130° point. Suited for steel, alloy steel, stainless steel. 6-1/8 flute length, 8-25/32 overall length. Series 1700.
Specifications
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.033 mm
Drill bit finish coatingV
Drill bit gradeHigh Performance
Drill bit materialCobalt
Drill bit size in13/16
Drill bit size range0.6500+
Drill point angle degrees130
Flute length in6-1/8
Flute typeSpiral
Number of flutes2
Overall length in8-25/32
Primary workpiece materialSteel; Alloy Steel; Stainless Steel
Shank diameter in7/8
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
