OSG

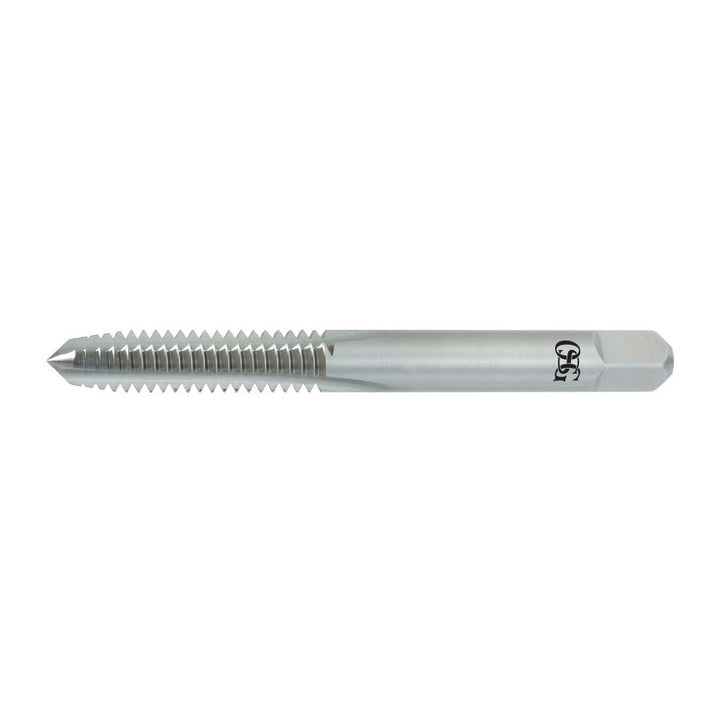

M5x0.8 Metric Coarse High-Speed Steel Standard Tap - OSG 1970600
MFR# 1970600Series 141
$10.57List $13.55
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description
The OSG 1970600 is a Metric Coarse High-Speed Steel Standard tap. 4 flutes.
Specifications
ChamferTaper
Class of fit6H
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length26.90
Number of flutes4
Overall length in2-3/8
OversizeNo
Shank diameter0.1940
Square length (mm)6.35
Square size0.1520
Tap typeStandard
Thread directionRight Hand
Thread length in7/8
Thread limitD4
Thread size (mm)M5x0.8
Thread standardMetric Coarse
