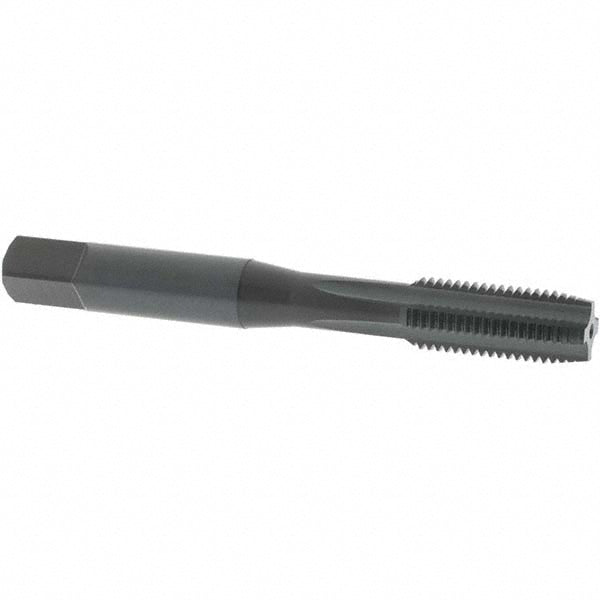

M8x1 Metric Fine High-Speed Steel Standard Tap, Oxide - OSG 1973401
MFR# 1973401Series 141
$11.21List $14.37
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
CoatingOxide
Description
The OSG 1973401 is a Metric Fine High-Speed Steel Standard tap with a Oxide finish. 4 flutes.
Specifications
ChamferPlug
Coating finishOxide
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length33.60
Number of flutes4
Overall length in2-23/32
OversizeNo
Shank diameter0.3180
Square length (mm)9.525
Square size0.2380
Tap typeStandard
Thread directionRight Hand
Thread length in1-1/8
Thread limitD5
Thread size (mm)M8x1
Thread standardMetric Fine
