OSG

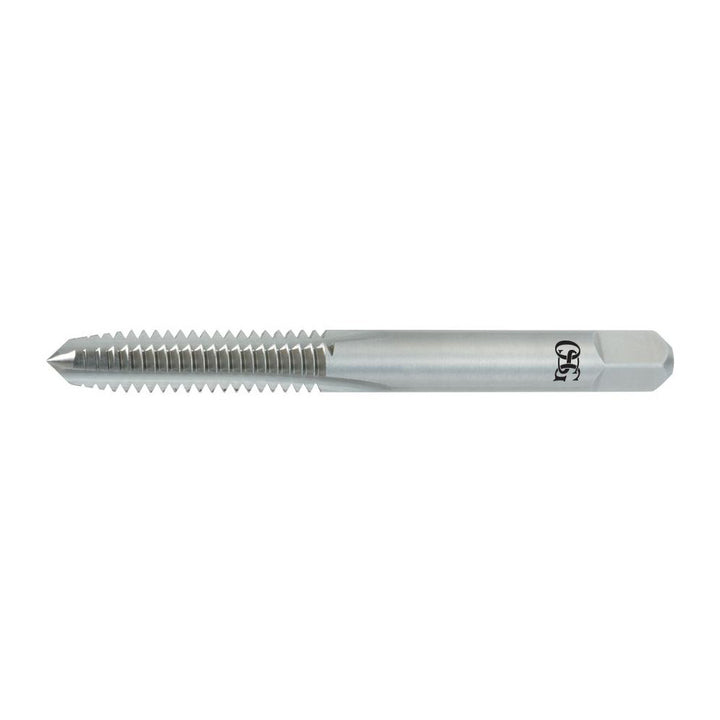

M10x1 Metric Fine High-Speed Steel Standard Tap, Oxide - OSG 1973701
MFR# 1973701Series 141
$22.98List $29.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
CoatingOxide
Description
The OSG 1973701 is a Metric Fine High-Speed Steel Standard tap with a Oxide finish. 4 flutes.
Specifications
ChamferPlug
Coating finishOxide
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length35.10
Number of flutes4
Overall length in2-15/16
OversizeNo
Shank diameter0.3810
Square length (mm)11.1125
Square size0.2860
Tap typeStandard
Thread directionRight Hand
Thread length in1-1/4
Thread limitD5
Thread size (mm)M10x1
Thread standardMetric Fine
