OSG

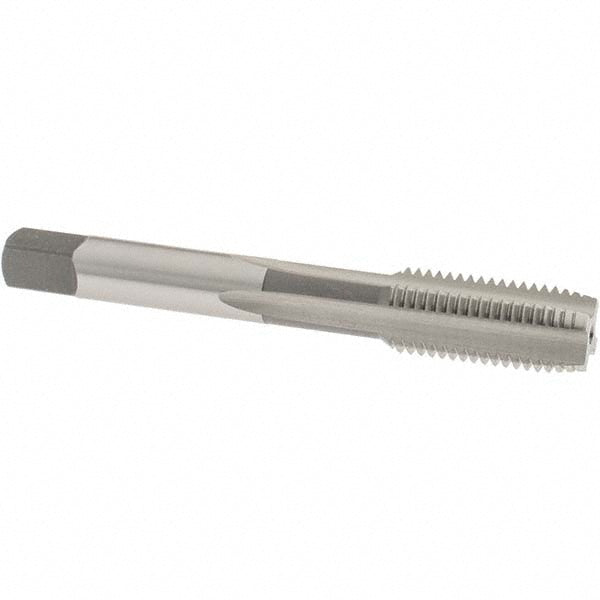

M12x1.5 Metric Fine High-Speed Steel Standard Tap - OSG 1974600
MFR# 1974600Series 141
$27.04List $34.68
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description
The OSG 1974600 is a Metric Fine High-Speed Steel Standard tap. 4 flutes.
Specifications
ChamferPlug
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length46.00
Number of flutes4
Overall length in3-3/8
OversizeNo
Shank diameter0.3670
Square length (mm)11.1125
Square size0.2750
Tap typeStandard
Thread directionRight Hand
Thread length in1-21/32
Thread limitD6
Thread size (mm)M12x1.5
Thread standardMetric Fine
