OSG

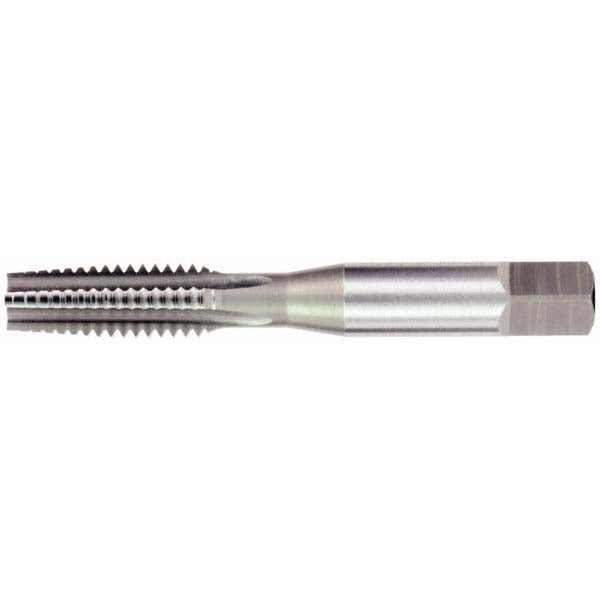

M36x4 Metric Coarse High-Speed Steel Standard Tap - OSG 1978600
MFR# 1978600Series 141
$349.67List $448.46
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description
The OSG 1978600 is a Metric Coarse High-Speed Steel Standard tap. 4 flutes.
Specifications
ChamferPlug
Class of fit6H
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length8.00
Number of flutes4
Overall length in6-1/16
OversizeNo
Shank diameter1.2330
Square length (mm)28.575
Square size0.9250
Tap typeStandard
Thread directionRight Hand
Thread length in3
Thread limitD9
Thread size (mm)M36x4
Thread standardMetric Coarse
