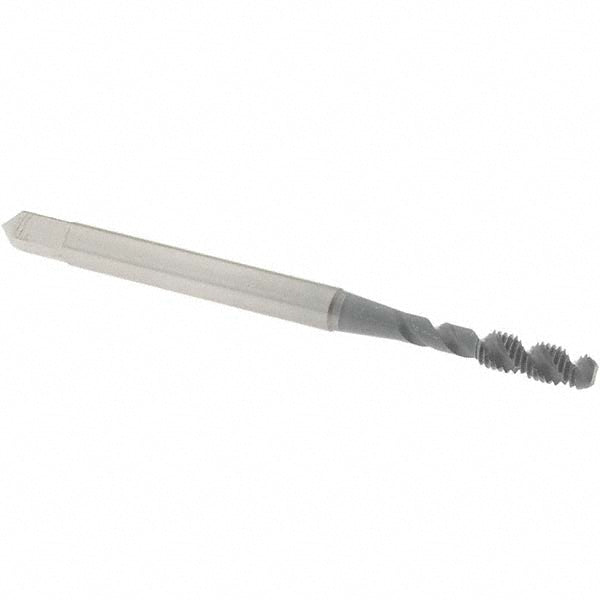

M3x0.5 Metric Coarse High-Speed Steel Tap, elektraLUBE - OSG 1985202
MFR# 1985202Series 143
$28.54List $36.61
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingelektraLUBE
Description
The OSG 1985202 is a Metric Coarse High-Speed Steel tap with a elektraLUBE finish. 2 flutes.
Specifications
ChamferBottoming
Class of fit6H
Coating finishelektraLUBE
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle52
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length (mm)35
Number of flutes2
Overall length in1-15/16
Shank diameter (mm)8.772
Square length (mm)9.525
Square size (mm)6.452
Thread directionRight Hand
Thread limitD3
Thread size (mm)M3x0.5
Thread standardMetric Coarse
