OSG
M8x1.25 M High-Speed Steel Tap, Steam Oxide - OSG 1986401
MFR# 1986401Series 143
$26.76List $34.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingSteam Oxide
Description

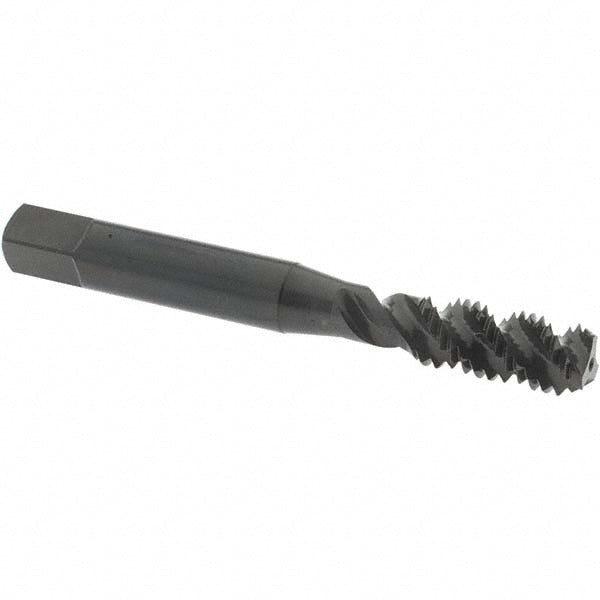

The OSG 1986401 is a M High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferBottoming
Class of fit6H
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length (mm)28.7
Number of flutes3
Overall length in2-23/32
OversizeNo
Shank diameter0.3180
Square length0
Square size0
Threads per inch0
Thread directionRight Hand
Thread length (mm)18
Thread limitD5
Thread size (mm)M8x1.25
Thread standardM
