OSG

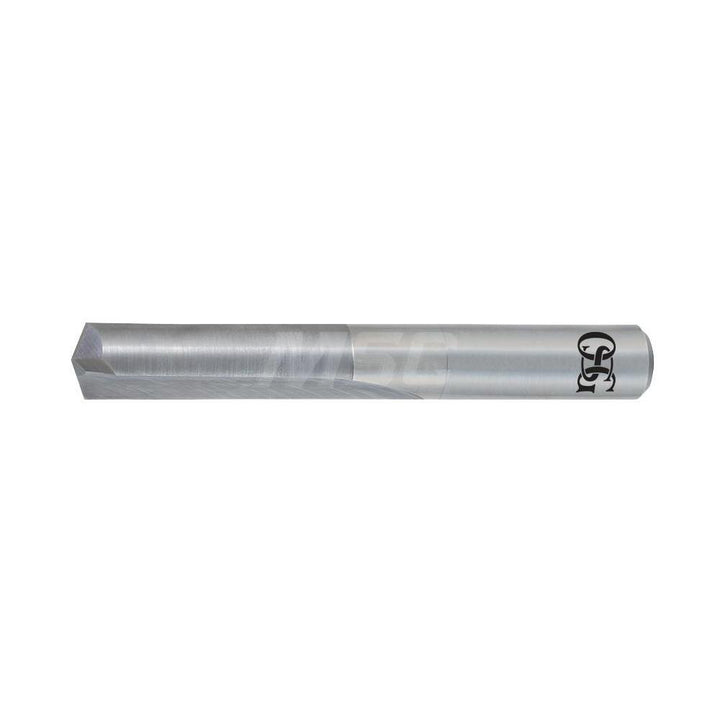

#33 Solid Carbide Drill Bit, 140° point - OSG 200-1130
MFR# 200-1130Series 200
$22.00List $27.73
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The OSG 200-1130 is a #33 Solid Carbide drill bit, 140° point. Suited for steel, cast iron. Series 200.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.013 mm
Drill bit finish coatingBright/Uncoated
Drill bit materialSolid Carbide
Drill bit size0.1130
Drill bit size wire#33
Drill point angle degrees140
Flute length (mm)22.20
Flute typeStraight
Number of flutes2
Overall length (mm)47.60
Point typeWeb-Thinned
Primary workpiece materialSteel; Cast Iron
Shank diameter (mm)2.87
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
