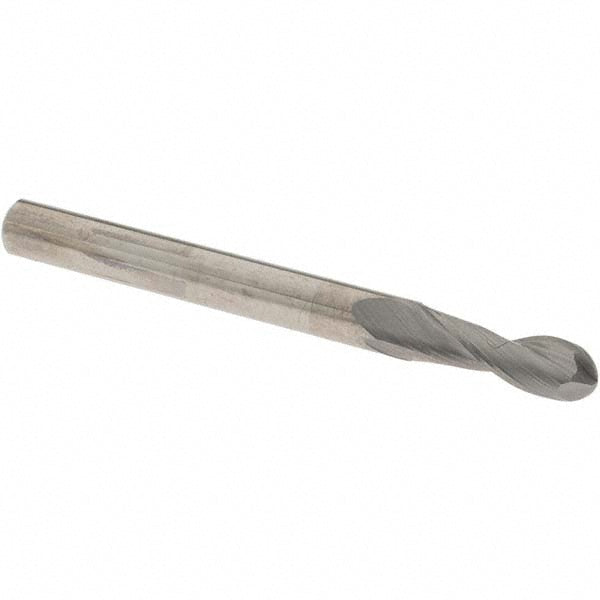

3/16in" 2-Flute Solid Carbide Ball End Mill - OSG 20100200

OSG

3/16in" 2-Flute Solid Carbide Ball End Mill - OSG 20100200

MFR# 20100200Series 2010

$32.11List $41.19 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16in
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The OSG 20100200 is a 3/16in 2-flute Solid Carbide (Micrograin) ball end mill. Suited for non-ferrous metal. 9/16in length of cut, 2in overall length. Series 2010.

Specifications

Additional informationThe Exocarbaero Blizzardseries Is Part Of The OSG Premium Line Of Carbide High Performance End Mills Specifically Designed For Either Aluminum Or Copper Alloys. Special End Cut Gashing And Offset Teeth Permit Large Depths Of Cut And Maximum Feed Per Tooth
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in9/16in
Length typeStandard
Manufacturers catalog number20100200
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in3/16in
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.0938
Number of flutes2
Overall length in2in
Primary workpiece materialNon-Ferrous Metal
Reach length0.5625
Shank diameter in3/16in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
