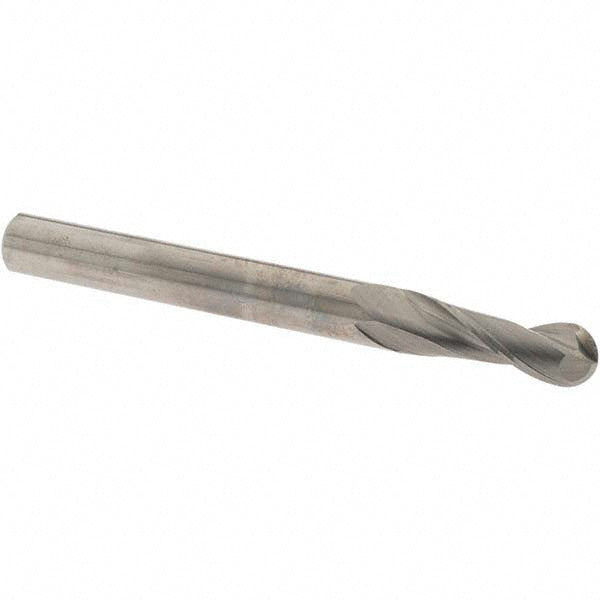

1/4in" 2-Flute Solid Carbide Ball End Mill - OSG 20100300

OSG

1/4in" 2-Flute Solid Carbide Ball End Mill - OSG 20100300

MFR# 20100300Series 2010

$43.08List $55.24 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4in
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The OSG 20100300 is a 1/4in 2-flute Solid Carbide (Micrograin) ball end mill. Suited for non-ferrous metal. 3/4in length of cut, 2-1/2in overall length. Series 2010.

Specifications

Additional informationThe Exocarbaero Blizzardseries Is Part Of The OSG Premium Line Of Carbide High Performance End Mills Specifically Designed For Either Aluminum Or Copper Alloys. Special End Cut Gashing And Offset Teeth Permit Large Depths Of Cut And Maximum Feed Per Tooth
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in3/4in
Length typeStandard
Manufacturers catalog number20100300
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in1/4in
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.1250
Number of flutes2
Overall length in2-1/2in
Primary workpiece materialNon-Ferrous Metal
Reach length0.7500
Shank diameter in1/4in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
